Vibrating motors that we provide to the market are using with mobile phones,game machines,toys,bar code readers,medical devices,parts feeders,for various purposer.
Especially coin type vibration motor,our pateted technology is utilized,thin,power saving,Response of ON and OFF is also excellent product.
|
Vibration motor product Line
|
◆ Coin type: Specifcation (Consumption current and rotation speed are representative values)
|
Model
|
Diameter
|
Thickness
|
Voltage
|
Current
|
Rotation speed
|
Remarks
|
|
SD-0834C2
|
Φ8
|
3.4mm
|
3.0V
|
60mA
|
11,000rpm
|
Small diameter
|
|
SD-1020C2
|
Φ10
|
2.0mm
|
3.0V
|
60mA
|
11,000rpm
|
Thin type
|
|
SD-1020BL
|
Φ10
|
2.0mm
|
3.0V
|
85mA
|
11,500rpm
|
Brush less/Long life
|
|
SD-1027C2
|
Φ10
|
2.7mm
|
3.0V
|
60mA
|
12,000rpm
|
Ordinary type
|
|
SD-1027LC
|
Φ10
|
2.7mm
|
3.0V
|
35mA
|
10,500rpm
|
Low current
|
|
SD-1234C2
|
Φ12
|
3.4mm
|
3.0V
|
45mA
|
10,500rpm
|
Strong vibration
|
※ From the left SD-0834C2・ SD-1020C2 ・SD-1027C2 or LC・ SD-1234C2
◆ Cylinder type: Specifcation (Consumption current and rotation speed are representative values)
|
Model
|
Cylinder
|
Voltage
|
Current
|
Rotation speed
|
Remarks
|
|
Diameter
|
Length
|
|
SD-0408CY
|
Φ4
|
8mm
|
3.0V
|
60mA
|
11,000rpm
|
Small type
|
|
SD-0612CY
|
Φ6
|
12mm
|
1.3V
|
50mA
|
8,000rpm
|
Low voltage(1.3V)
|
|
SD-0820CY
|
Φ8
|
20mm
|
3.0V
|
70mA
|
11,500rpm
|
Strong Vibration
|
※ From the left SD-0834C2・ SD-1020C2 ・SD-1027C2 or LC・ SD-1234C2

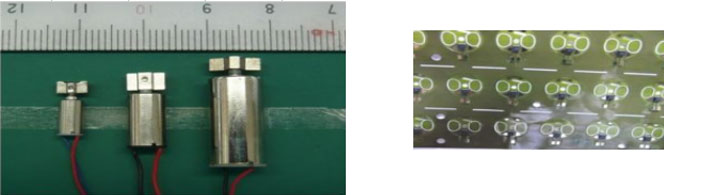

※ From the left SD-0408CY・ SD-0612CY ・SD-0820CY
◆ Application:Mobile phones, game machines, toys, bar code readers,medical equipment, watches, etc.
◆ Detail:We will provide individual specification for each model
|
